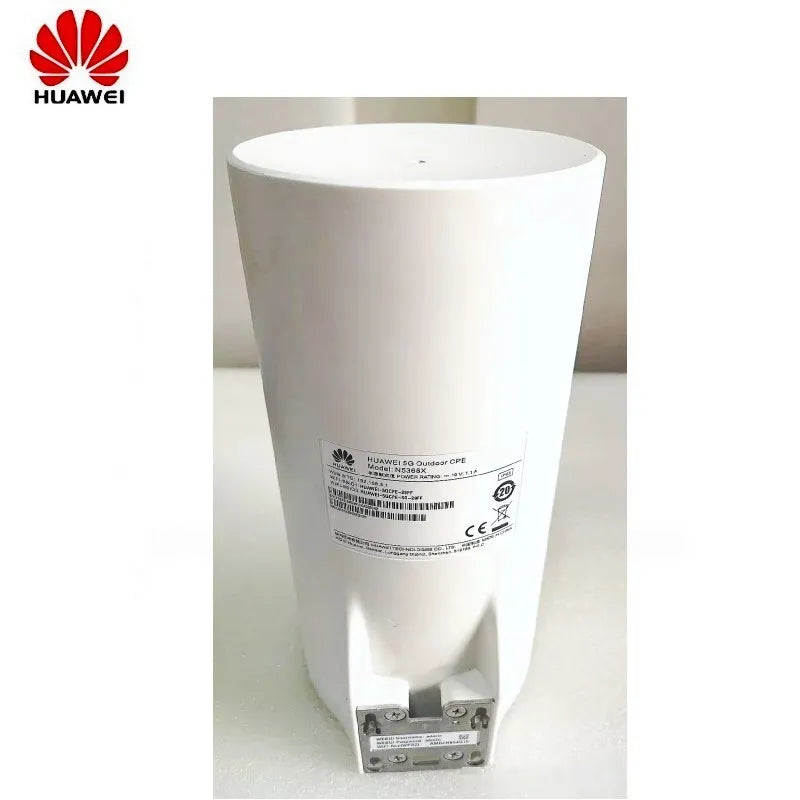

Huawei 5G Outdoor CPE N5368X

Huawei 5G CPE N5368X Specifications:

* Product type: 5G Outdoor CPE

* Operating Frequency bands:
- 5G NR: n78/n77/n41/n38
- LTE FDD: Band 1/Band 3/Band 7/Band 8/Band 20/Band 28
- LTE TDD: Band 38/Band 40/Band 41/Band 42/Band 43
- WLAN: 2.4 GHz/5 GHz
- Note: The supported operating frequency bands vary with areas. The n78 frequency band range is 3400–3800 MHz.

* Maximum Transmit Power:
- 5G NSA: 23 dBm@1T
- 5G SA: 26 dBm@2T
- LTE: 23 dBm
- ODU WLAN 5G: 14 dBm
- ODU WLAN 2.4G: 16 dBm
- Note: The supported WLAN maximum conducted transmit power varies with areas.

* Vendor Model: HW-190126D0D

* Output Voltage: 19 V ± 5%

* Output Power: 24 W

* High Data Rate and Larg Bandwidth :
- For NSA Network : A PS “ Packet Switched rate of up to 1.5 Gbit/s in Download and 110 Mibit /s in the Uplink
- For SA Network : A PS “ Packet Switched rate of up to 1.5 Gbit/s in Download and 220 Mibit /s in the Uplink

* High–Rate WLAN Access "Routing Mode":
- A Maximum of 32 device can be connected at 2.4 GHZ and 5GHZ Bands
- A Maximum of 300 Mbits /s with IEEE 802 .11n at 2.4 GHZ
- A Maximum of 867 Mbit/s with IEEE 802.11ac at 5GHZ

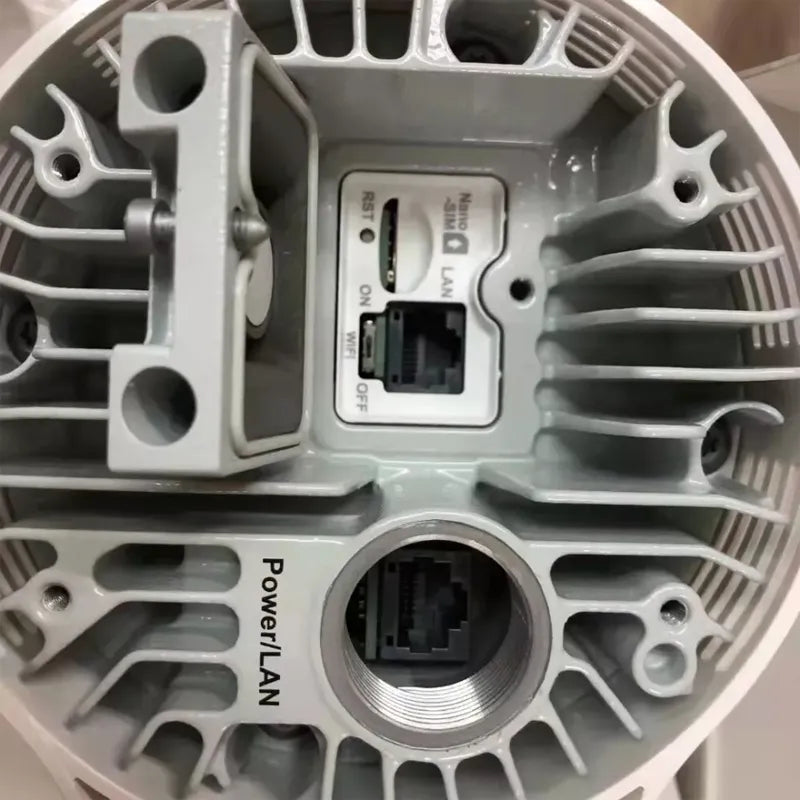

* Interfaces:
- 1 x NANO SIM card slot
- 1 x LAN port
- 1 x Power/LAN port

* Support IP address, MAC address, URL filtering

* What's included:
- 1 x N5368X CPE

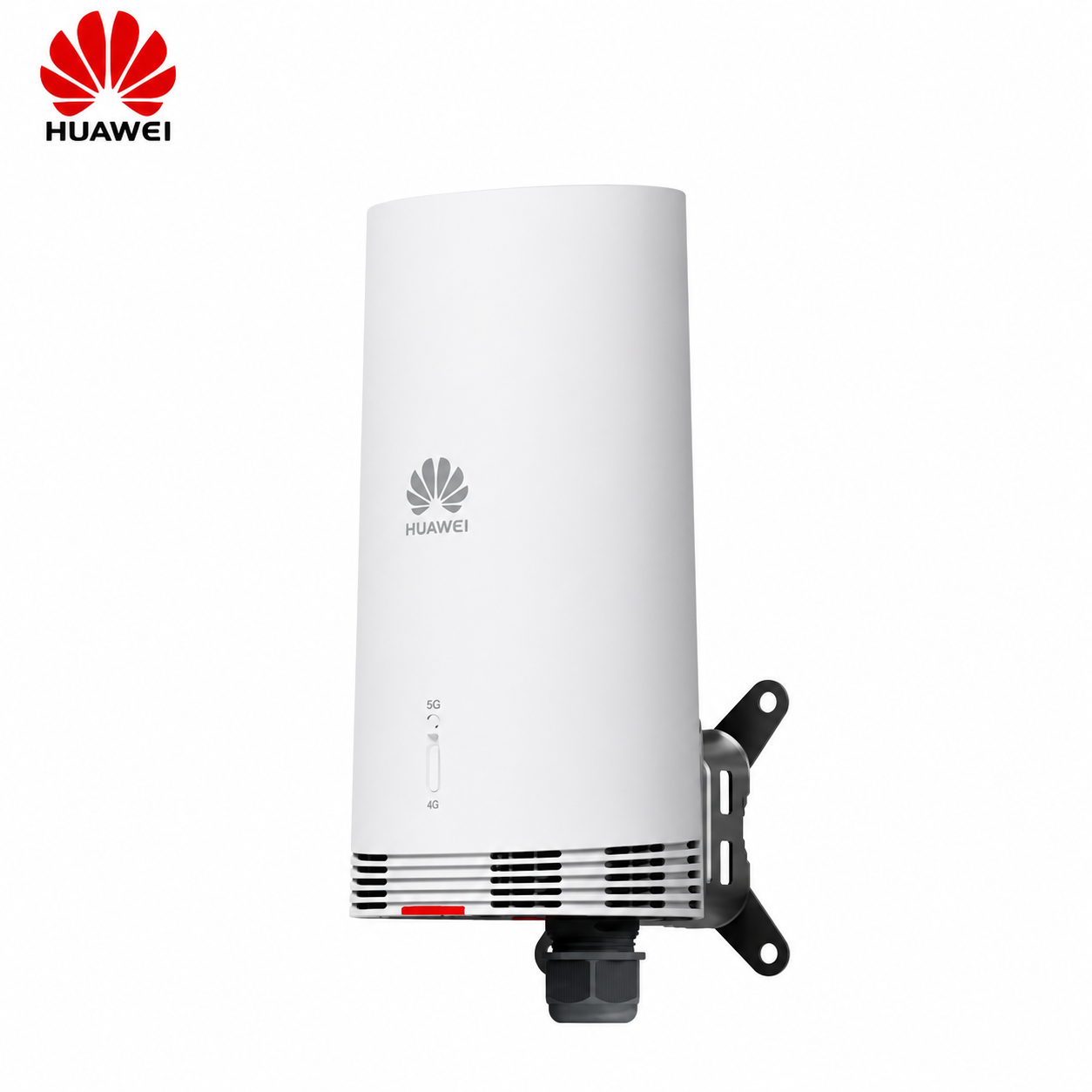

- 1 x Outdoor-oriented mounting bracket(including bolts)
- 1 x Indoor Fixed-length Ethernet cable
- 1 x Indoor-oriented mounting bracket
- 1 x Waterproof PG connector
- 2 x Hose Clamp
- 1 x Quick Start
